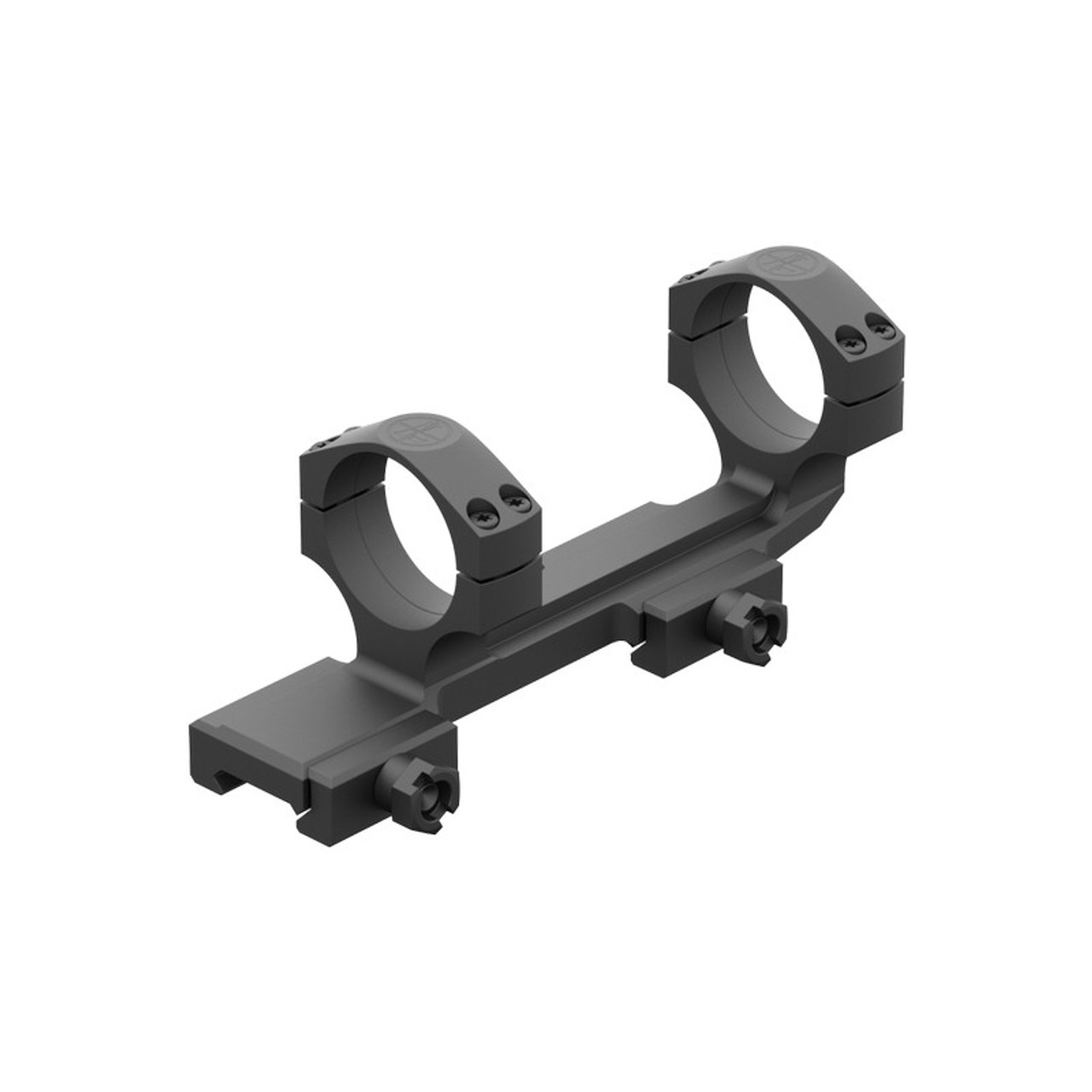

The Leupold® Integral Mounting Systems (IMS) family quickly and easily eliminates the two most common issues faced when mounting standard riflescopes to AR-style rifles; scope height and eye relief. From the Mark 1™ to the Mark 4®, each aluminum IMS® cantilever design mounts directly to the firearm’s MIL-spec 1913/Picatinny to raise the scope and push it forward, eliminating the need for risers or specialized optics with shortened eye relief. All Leupold IMS® products are tested to endure the rigors of the field and covered by the Leupold Lifetime Guarantee.Specifications:
- Material Aluminum
- Base Cant No
- Ring Diameter 35 mm
- Ring Height (in) 1.5
- Weight (oz) 6
- Keeper Clamp Torque 65 in-lbs
- Ring Top Screw Torque 28 in-lbs
- Length (in) 6.04
- Rear Offset (in) 1.4
- Ring Depth (in) .65
- Length Within Rings (in) 3.34
- Keeper Length (in) 4.95
- Front Offset (in) 1.09
- Ring Width (in) 1.98
- Ring Height (in) 1.5
